Mkr-500g steel cotton production line

In making knife holder, adopt unique "no clearance process."(knife holder clearance Less than 0.05mm), without replacement,can use lifelong.We have special way to inspect the stablity of our machine that is : put a coin to stand on the machine.it will not move and run away when the machine woring.Through continuous improvement, Add the cooling system, wire wheel material is more wear-resisting, definitely long service life. Technology is more mature.

Online consultation

National hotline

0515-88230777
0515-88235777

Productintroduction

Product Description

In making knife holder, adopt unique "no clearance process."(knife holder clearance Less than 0.05mm), without replacement,can use lifelong.
We have special way to inspect the stablity of our machine that is : put a coin to stand on the machine.it will not move and run away when the machine woring.Through continuous improvement, Add the cooling system, wire wheel material is more wear-resisting, definitely long service life. Technology is more mature
Through continuous improvement, Add the cooling system, wire wheel material is more wear-resisting, definitely long service life. Technology is more mature

Main technical date
Specification:MKR-500G Main machine station 4
Knife holders of main machine 60 groups The spool diameter of main machine ?500MM
Grooves of spool 36 circles The most cuting point 2160
Production capacity 1600-2000 kg /8h(1-80 varieties as the standard)
Raw material of steel wool SGM ?3.00MM.(meet the requitments of GB/T 17505-4)
Installed capacity 132.5KW(explain Main electric motor 90KW,50Hz.With vector frequency conversion governor)
The total weight of machine 12000kg

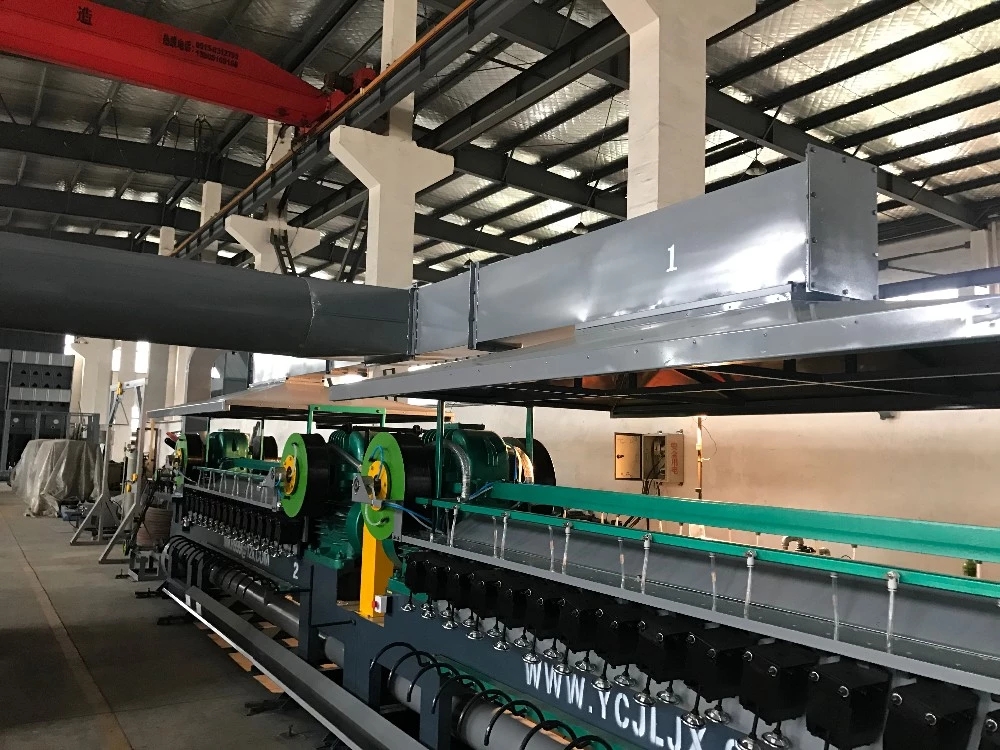

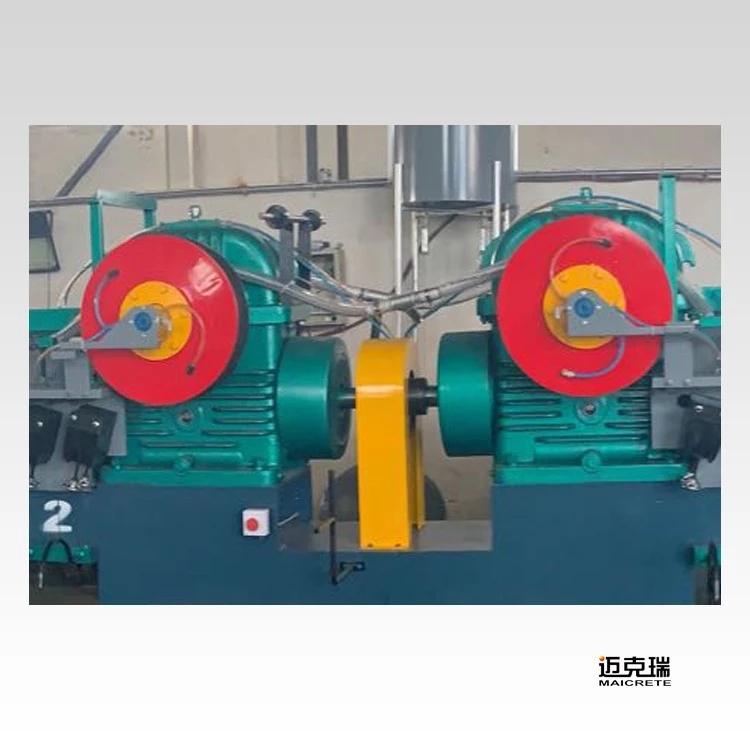

Products Show
